Power Regulator: Complete PCB Design Tutorial
Learn how to create a complete power regulator from scratch in Flux. From IC selection, schematic creation, to layout, this comprehensive tutorial will guide you through the entire process.
Project Overview
This tutorial series will guide you in creating a power converter PCB using an off-the-shelf IC and buck converter. We'll embark on an end-to-end exploration, from choosing an integrated circuit (IC) to creating its schematic and printed circuit board (PCB) and finally routing and applying the finishing touches, all with Flux.
The entire project will be divided into three main sections:

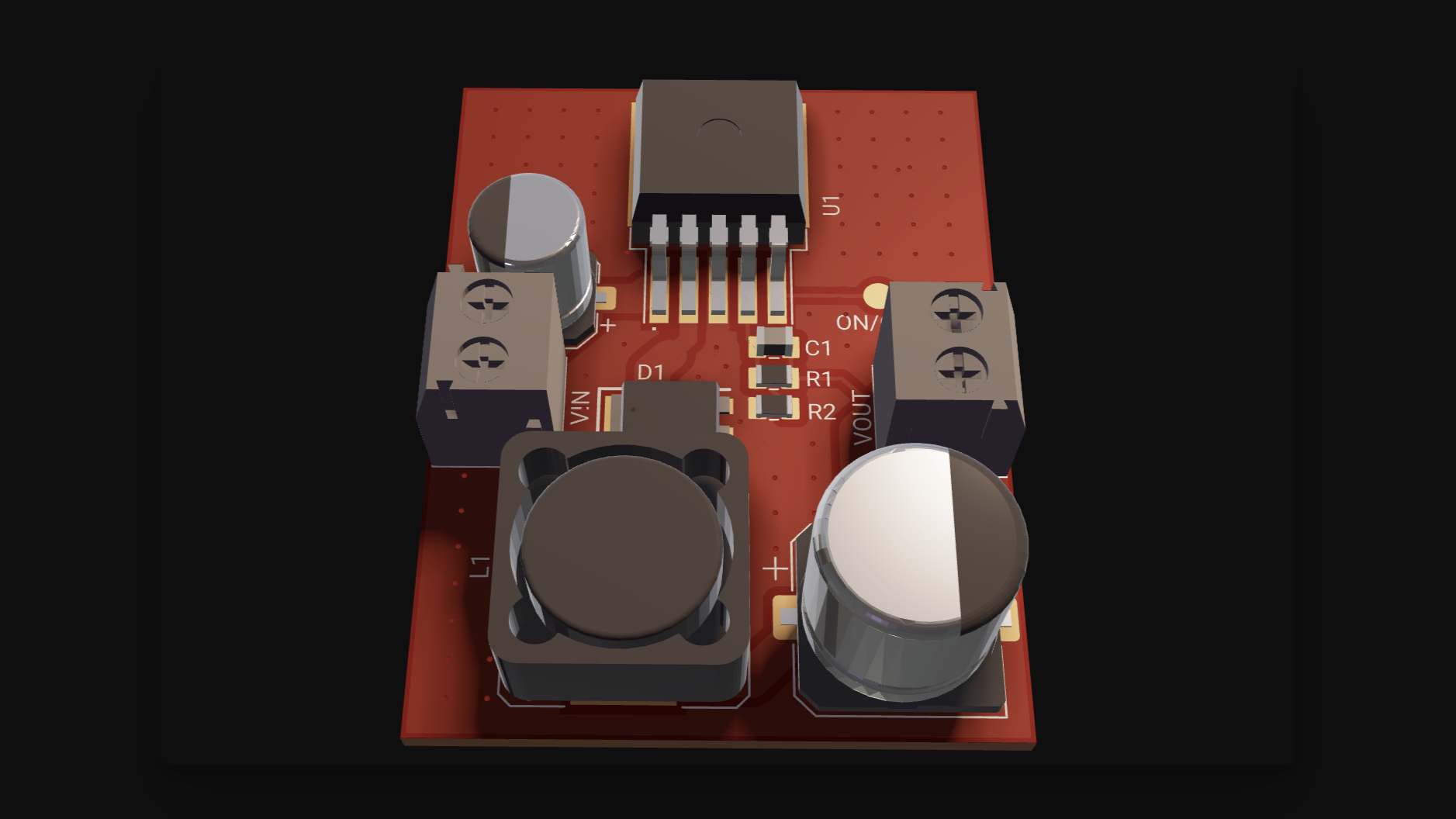

By the end of this series, you'll have a clear grasp of power converter creation and the confidence to design and implement your own in various contexts. Here's the final version of the project we'll be creating.
Why Create a Power Converter?
When building a project around a microcontroller like the ESP32, managing power is crucial. The ESP32 typically operates at 3.3V, but in many cases, the available power source might not match this requirement. For example, you might be working with a 5V USB supply, a 12V power adapter, or even a battery that outputs a range of voltages.
This is where designing your own power converter, such as a buck converter, becomes essential. A buck converter efficiently steps down higher voltages to meet the ESP32's 3.3V power requirement. This ensures stable operation and protects the ESP32 from over-voltage damage, while also improving power efficiency compared to linear regulators.
By understanding how to design a custom power converter, you can tailor the power delivery to your specific project needs. Whether you're powering additional sensors, driving motors, or incorporating wireless modules, having a reliable power conversion solution will allow you to handle fluctuating loads and optimize your system's performance.
In short, mastering power converter design gives you more control over your ESP32 projects, helping you build more robust, flexible, and efficient devices.
What You'll Learn
Understanding power and buck converters and their role in electronic projects.
Selection criteria for Integrated Circuits (ICs), focusing on buck converters.
Detailed steps for creating schematics and PCB layouts.
Practical tips for component placement, and PCB design.
Use of Flux and Copilot tools for efficient PCB design and troubleshooting.
Fundamentals of DC-DC converters / buck converters, including operation principles and key components.
Application and specifications of the LM2596 IC in converter design.
Techniques for converting PCB projects into reusable modules in Flux.
- Guidance on thermal relief usage in PCB design for optimal thermal management.
Final design checks and the process of exporting files for PCB manufacturing.
