Learn how to create an efficient PCB layout for your LM2596 buck converter, with a focus on component placement, trace widths, and thermal management.
Overview
Designing the PCB for your buck converter is crucial for ensuring efficiency, thermal management, and overall performance. In this section, we'll cover layout tips, routing strategies, and the importance of design checks before exporting your project for manufacturing.
Getting Started
Creating the PCB involves configuration for the following points:
- Stackup
- Min and max trace width for low current traces
- Min and max trace width for high current traces
We can ask copilot to give advice for all of these, discussed below. Flux also has rulesets, which allow us to easily set default min and max widths for both high and low-current traces, also discussed in a section below.
Copilot for PCB Creation
When creating the PCB, several design considerations are important for a buck converter. Copilot can assist with advice on the following
General Considerations
@Copilot: What do I need to know when designing a PCB for a buck converter that uses the LM2596?
Routing Tips

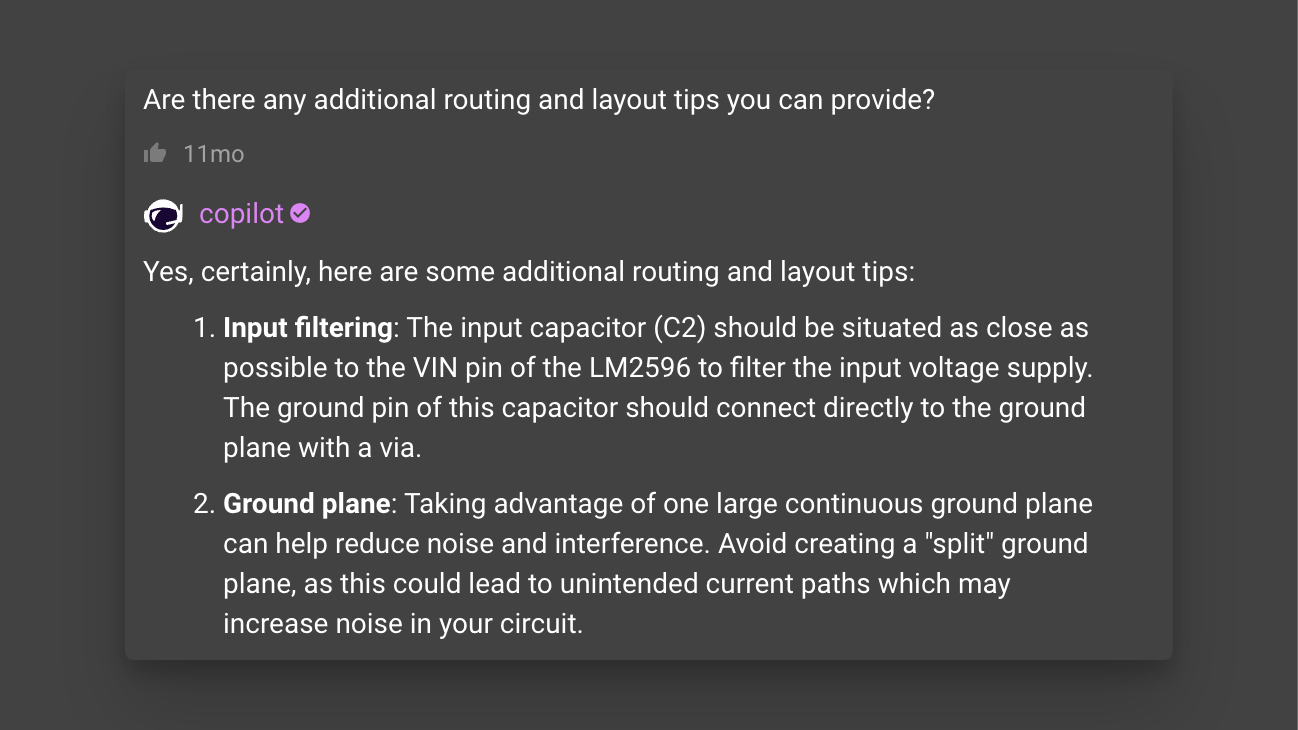

@Copilot: Additional routing and layout tips you can provide?
Thermal Relief
Thermal reliefs are used in PCB design to retain heat in a specific area of the copper pad to aid in soldering. They are also used to prevent excessive heat from flowing away from the pad into the surrounding plane during soldering or rework. When designing a board that may contain high currents, this is important to keep in mind.

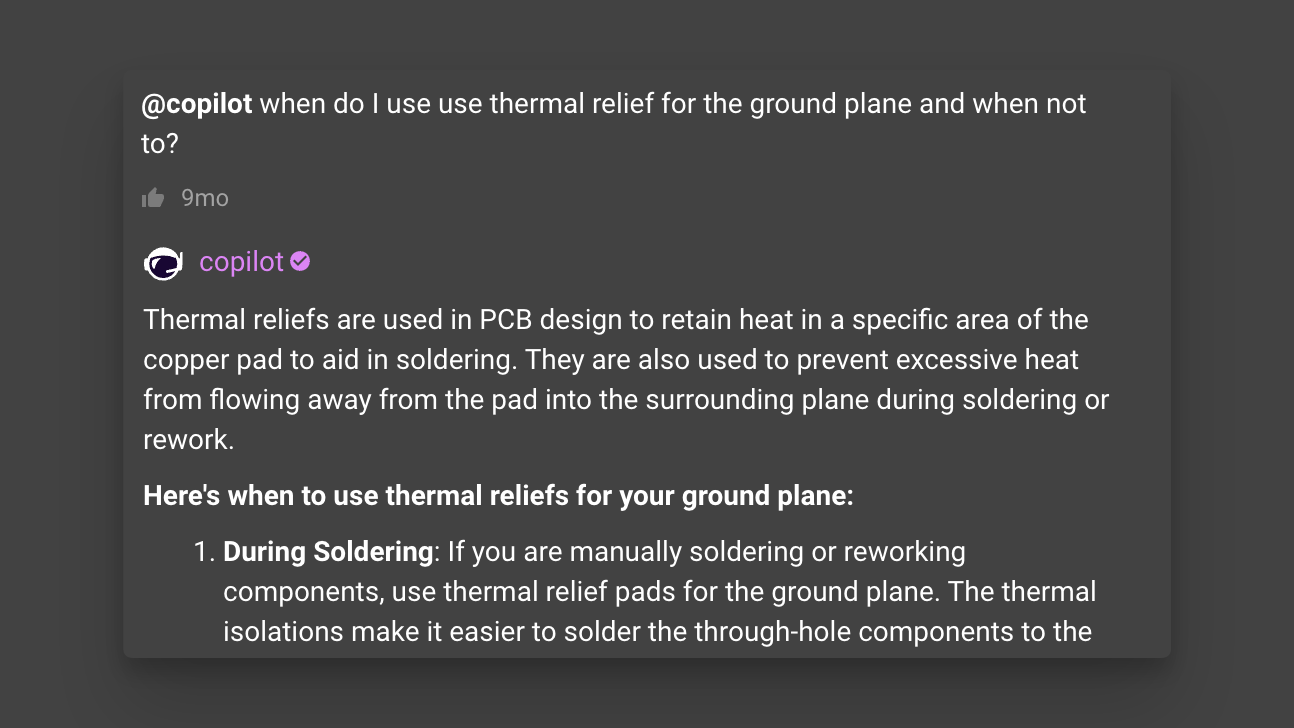

@Copilot: When do I use thermal relief for the ground plane and when not to?
Layout and Routing

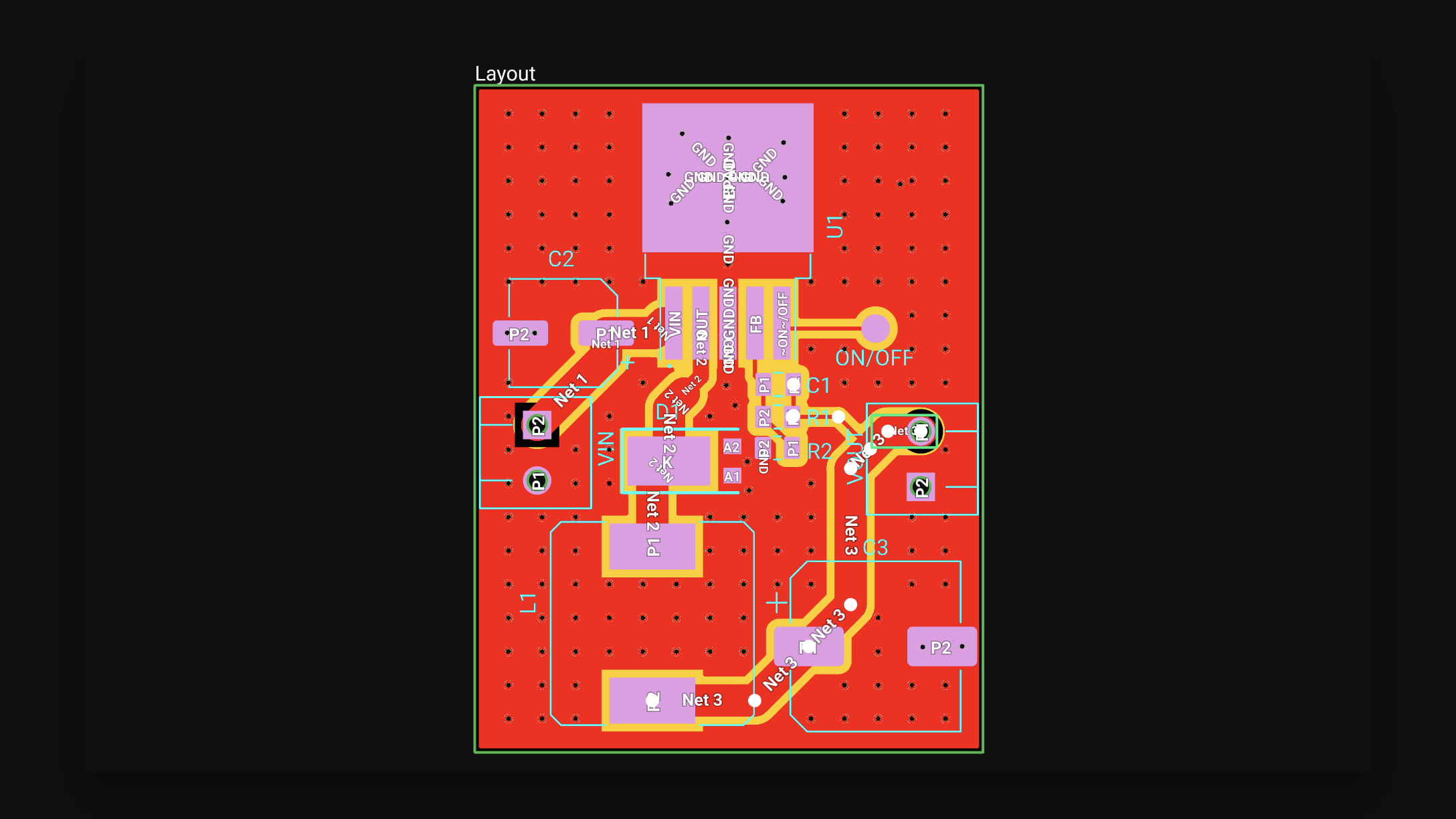

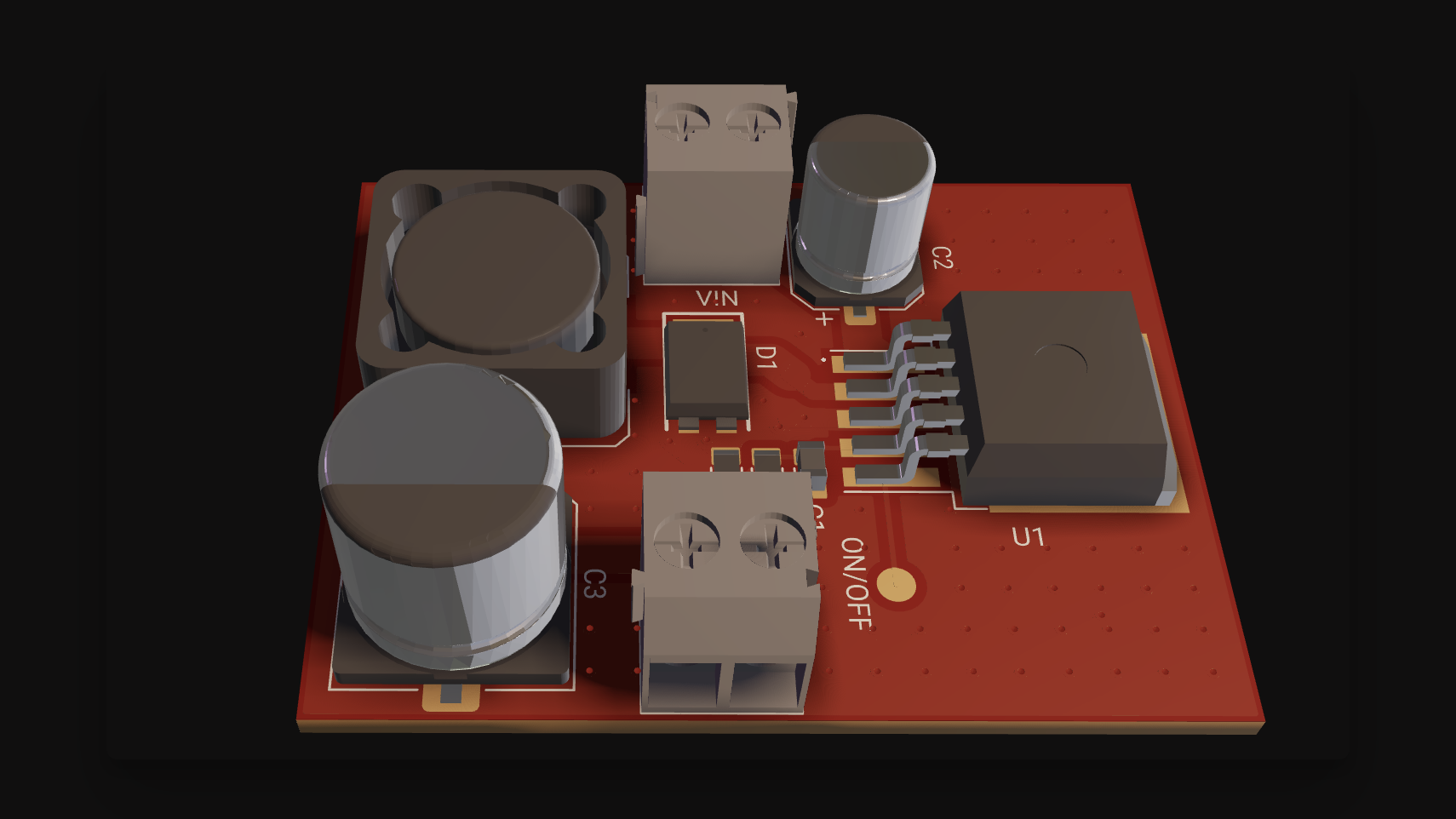

Taking the advice from copilot, we've created the following PCB layout of our buck converter power regulator.

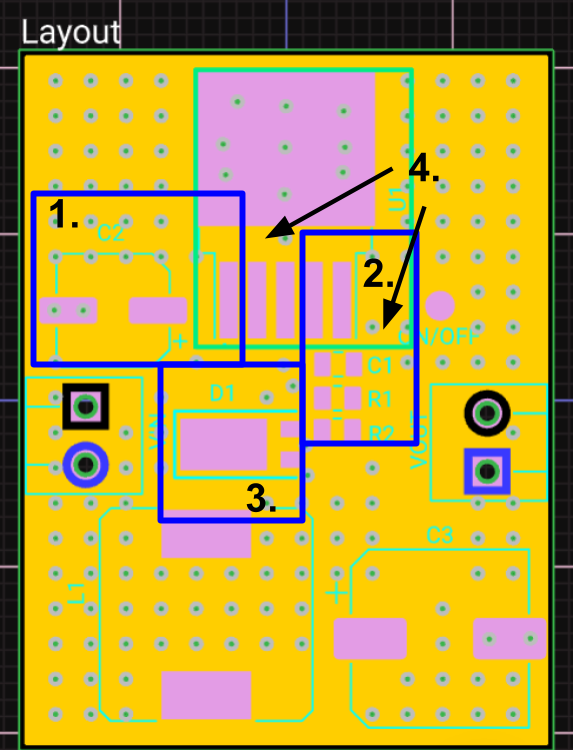

Top layer of PCB with layout component without any copper shown
Some points of note:
- C2 placed close to VIN pin
- R1 and R2 placed close to the feedback pin
- D1 placed near SW (with L1 relatively close by)
- R1 and R2, which will contain the traces used for feedback are spaced a bit further away from the SW/OUT node
Nets and Trace Widths
In our project, we have power traces that carry relatively larger amounts of current, and then signal traces that carry relatively less. For this reason, we want to have two trace widths:
- Traces connected to the +12V and +5V node will either be drawing a lot of current from the source, or delivering current to the load and therefore should have a width of 80mil.
- Traces that carry a signal such as the ON/OFF switch or feedback pin only need to read a voltage value, and should not have much current, can be set to 10mil.

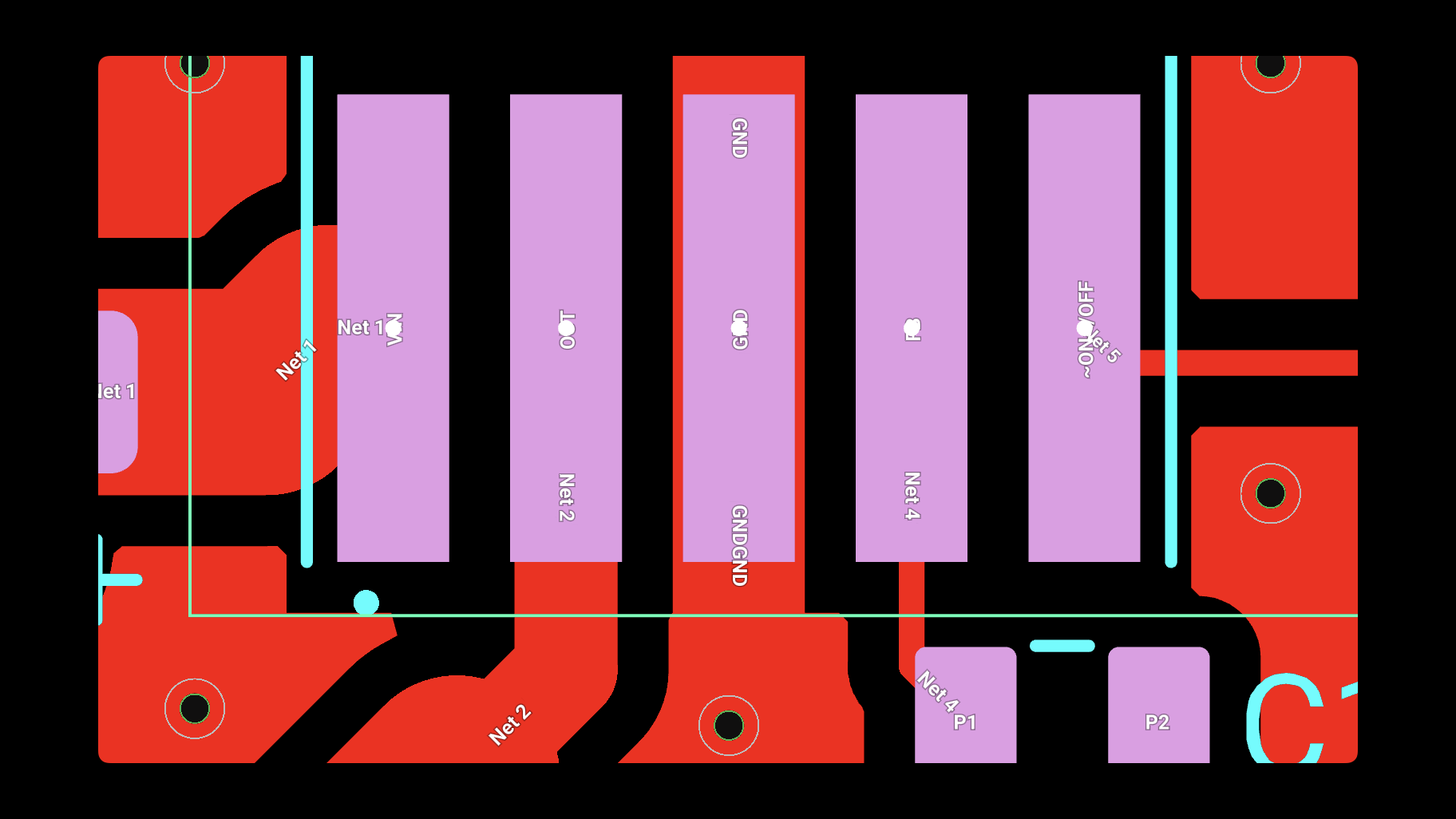

- Traces that go to the pins of the actual converter are limited by the pins' spacing and are 40mil in width.

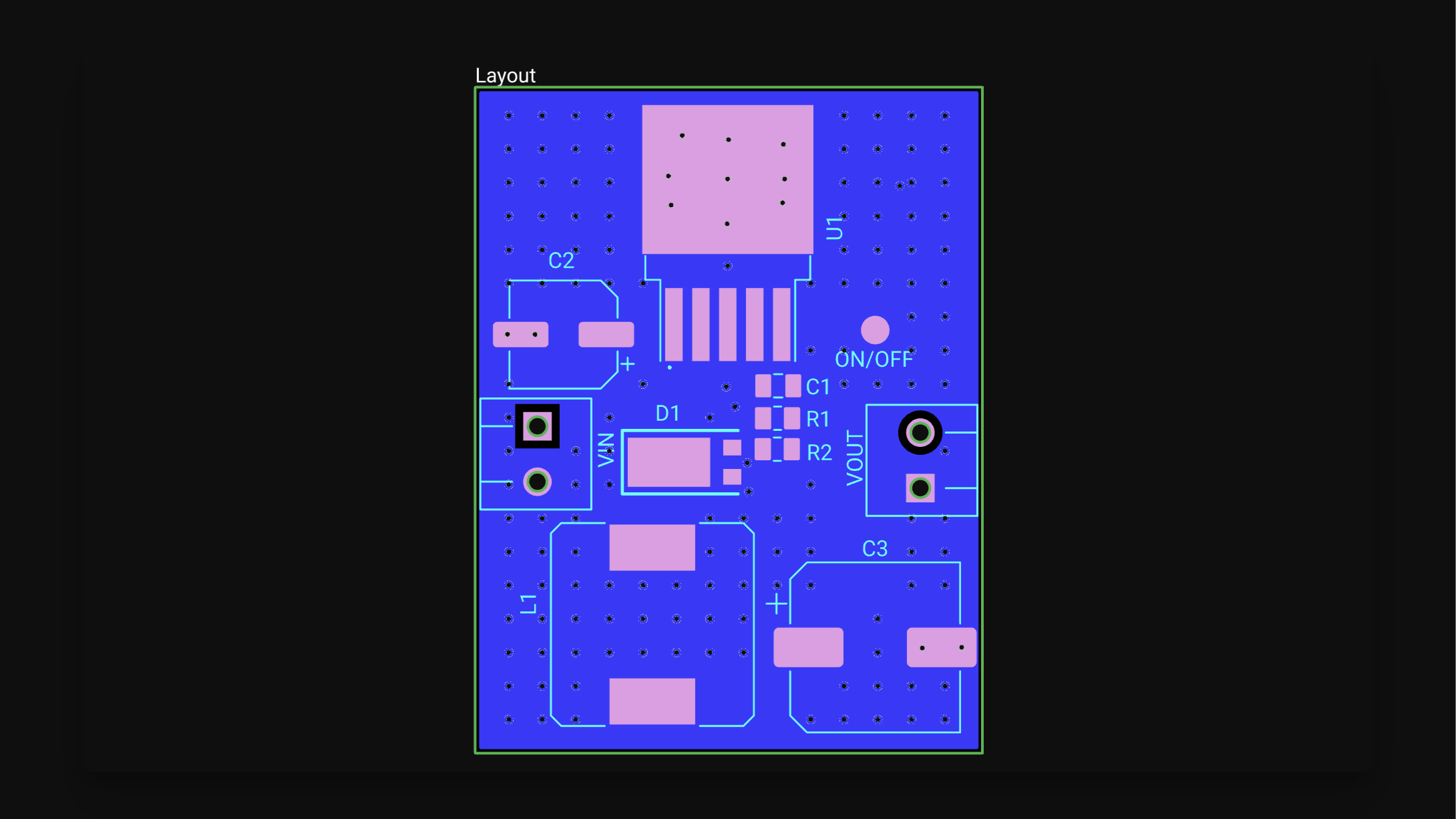

Bottom layer of the board is one big copper fill
Therefore, it is advantageous to create a few rulesets:
One ruleset that sets default trace width to 80mil
One ruleset that overrides Net 5 (associated with the on/off pin) to 10 mil. Overriding is a feature of inheritance property for rules.
- We can rename Net 5 to something identifiable and create a selector-based rules off of that.
Object-specific trace widths for the remaining nets:

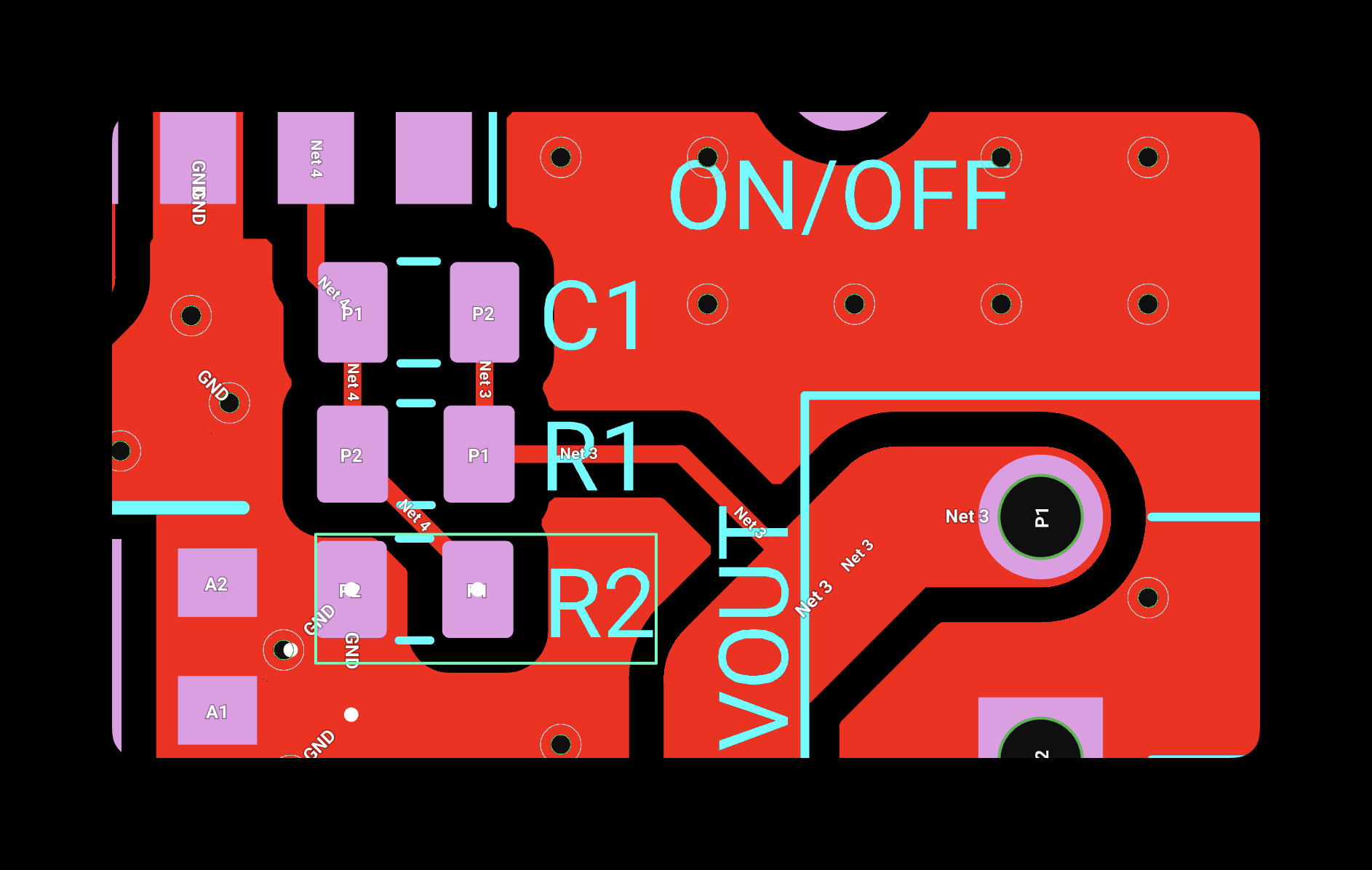

10 mil for the feedback path (Vout terminal → feedback resistors → feedback node)
40 mil for the OUT pin on the buck converter
Final Design Checks and Exporting
Now that we've done the layout, we want to make sure we're ready for exporting. Beforehand make sure to check there aren't any design rule check (DRC) errors.
Manufacturers of Printed Circuit Boards (PCBs) require a particular collection of files to process your design for both fabrication and assembly. These files are essential as they generate the necessary instructions for the sophisticated equipment and tools used in PCB production.
Project Export
Once we're happy with our board, we can go ahead and export the necessary files for production. For a comprehensive list of export options, please refer to the gerber export section. In our case, we want to focus on the gerber files.

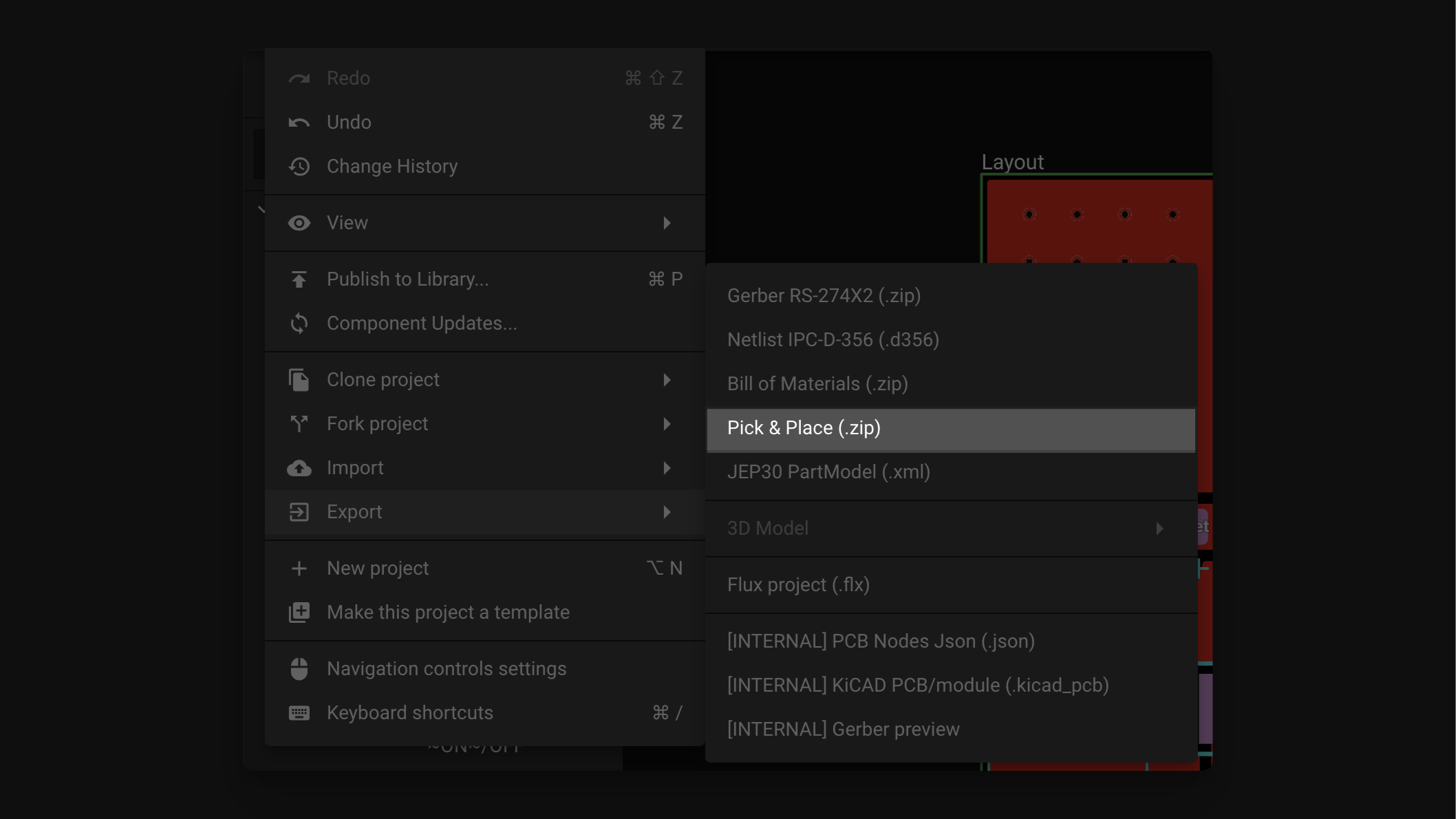

- Under Flux > Export > Gerber
After the production of your board, you have the option to either ship it for self-assembly or choose to have it assembled by either the manufacturer or a different company. In the case of the latter, additional files will be needed. It is important to download these files and verify that the data they contain accurately reflects the details of your design project —See our detailed manufacturing section for pointers.
Critical Layout Guidelines
When designing a buck converter PCB, follow these critical guidelines:
- Keep high-current loops small: Minimize the area of the loop formed by the input capacitor, switching MOSFET, and diode
- Separate power and signal grounds: Use a star connection point to minimize noise coupling
- Place components strategically: Input capacitor close to VIN, output capacitor close to load
- Use wide traces for power paths: Size traces according to current requirements
- Add thermal vias: For components that generate heat, especially the IC and diode
- Consider EMI reduction: Add input filtering and keep sensitive signal traces away from switching nodes
Trace Width Calculation
Use the following guidelines for determining trace widths:
| Current (A) | Trace Width (mil) | Temperature Rise (°C) |
|---|---|---|
| 0.5 | 10 | 10 |
| 1.0 | 20 | 10 |
| 2.0 | 50 | 10 |
| 3.0 | 80 | 10 |
| 5.0 | 150 | 10 |
For higher currents or different temperature rises, use an online trace width calculator.
Troubleshooting Common Issues
Excessive Noise or Ripple
- Check for proper component placement and loop minimization
- Verify ground plane integrity and connection points
- Add additional filtering capacitors if necessary
Thermal Problems
- Ensure adequate copper area for heat dissipation
- Add thermal vias under heat-generating components
- Consider adding a heatsink for the IC in high-current applications
EMI Issues
- Keep switching node traces short
- Add input filtering
- Consider adding a shield or keep sensitive circuits away from the converter
What's Next
In conclusion, this comprehensive tutorial series has provided a detailed roadmap for designing a DC-DC buck converter using the LM2596 IC DC-DC converter, from the initial selection of the IC based on critical parameters to the creation of a schematic and PCB layout.
Now that you've completed your buck converter design, you might want to explore:
- Testing Your Buck Converter - Learn how to verify your design's performance
- Advanced Power Regulation Techniques - Explore more sophisticated power management solutions
- Integrating Your Buck Converter - Learn how to incorporate your power module into larger projects
Whether you're a seasoned engineer or a budding electronics enthusiast, Flux's powerful tools equips any engineer with the modern workflows necessary to confidently design and implement your own power converter PCBs.
